At IG Supplies Ltd, we are committed to elevating the standard of interior finishing in East Africa with our premium range of acoustic ceiling boards and ceiling grid systems. Sourced from trusted international manufacturers such as Thai Acostic and top gypsum board producers, our products are designed to offer superior acoustics, fire resistance, and aesthetic appeal for commercial and residential buildings.

Whether you are an architect, interior designer, contractor, or developer, our ceiling solutions provide versatile, high-performance, and cost-effective options for a variety of applications.

---

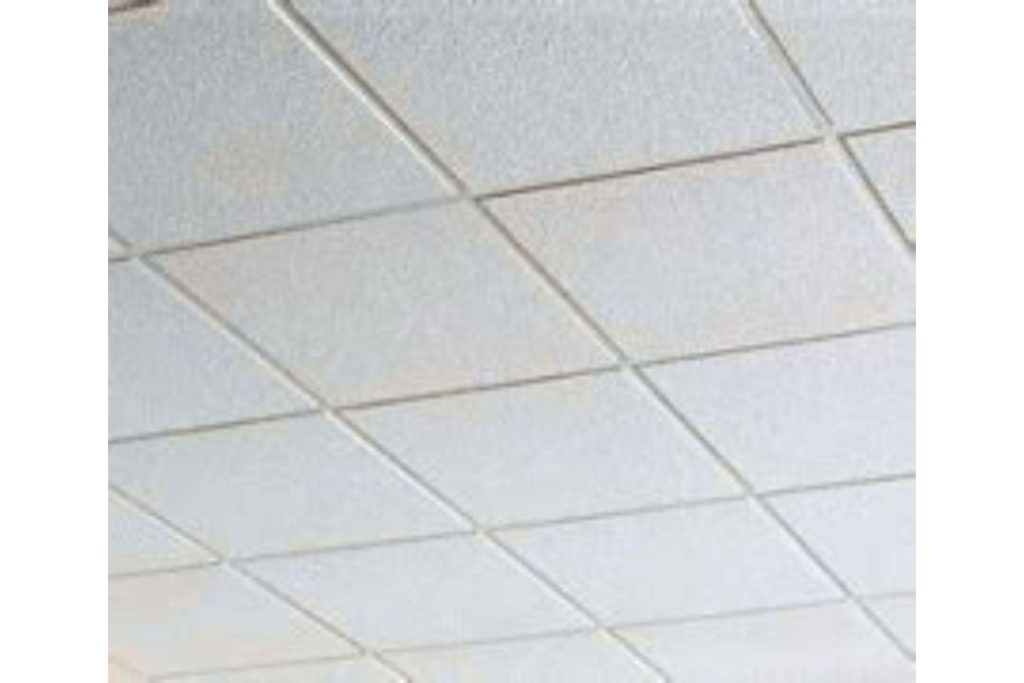

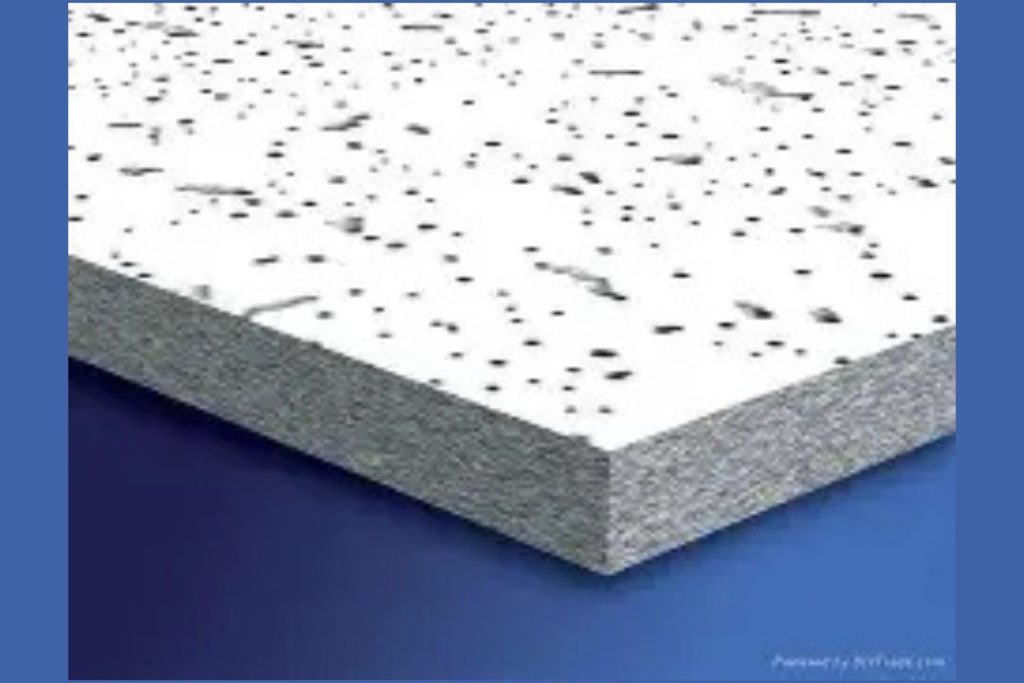

🎧 1. Acoustic Ceiling Mineral Fibre Board – 14mm (Thai Acostic, Brown Carton)

Description:
This is a 14mm thick acoustic mineral fibre ceiling board packaged in the distinctive brown carton from Thai Acostic, a leading brand known for quality and performance. Made from a blend of mineral wool, clay, starch, and perlite, these boards deliver excellent sound absorption and thermal resistance.

Specifications:

• Size: 600mm x 600mm or 600mm x 1200mm
• Thickness: 14mm
• NRC (Noise Reduction Coefficient): 0.60 – 0.75
• Fire Rating: Class A (non-combustible)
• Edge Type: Square or Tegular
• Surface: Painted fissured white for aesthetic finish

Applications:

• Office ceilings
• Banks and boardrooms
• Educational institutions
• Retail outlets and supermarkets
• Hospitals and cleanroom ceilings

Advantages:

• Superior acoustic control for noisy environments
• Energy-efficient with high thermal resistance
• Fire-safe and moisture-resistant
• Easy to install and replace
• Compatible with standard grid systems

---

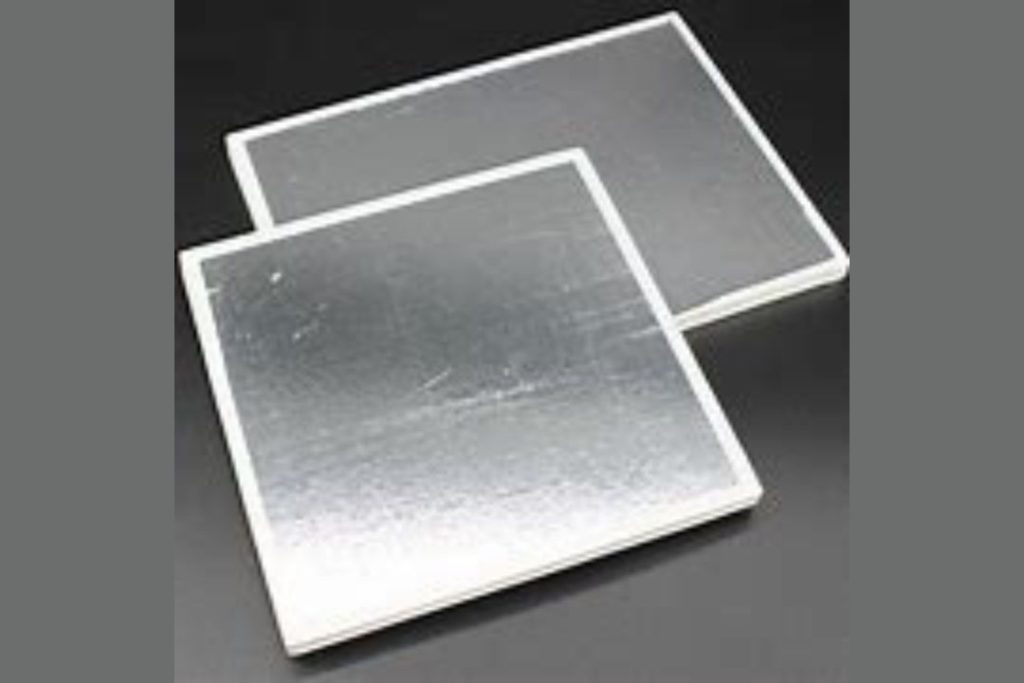

🧱 2. Gypsum Acoustic Ceiling Board – Design 975

Description:
This is a decorative acoustic gypsum ceiling panel known as Design 975, used for aesthetic ceiling applications that require both design and performance. Manufactured from high-quality gypsum with micro-perforations, it enhances sound attenuation and airflow.

Specifications:

• Size: 600mm x 600mm or custom sizes
• Thickness: 9mm – 12mm
• Pattern: Design 975 – perforated with circular or square holes
• Backing: Acoustic fleece for noise dampening
• Fire Resistance: Up to 60 minutes with proper framing

Applications:

• Auditoriums and conference rooms
• Luxury residential spaces
• Hotels and hospitality lobbies
• Studios and broadcasting rooms
• Libraries and corporate offices

Advantages:

• Premium aesthetics with integrated acoustic functionality
• Helps meet LEED and Green Building standards
• Works with concealed or exposed suspension systems
• Supports air circulation for HVAC integration
• Lightweight and easy to install

---

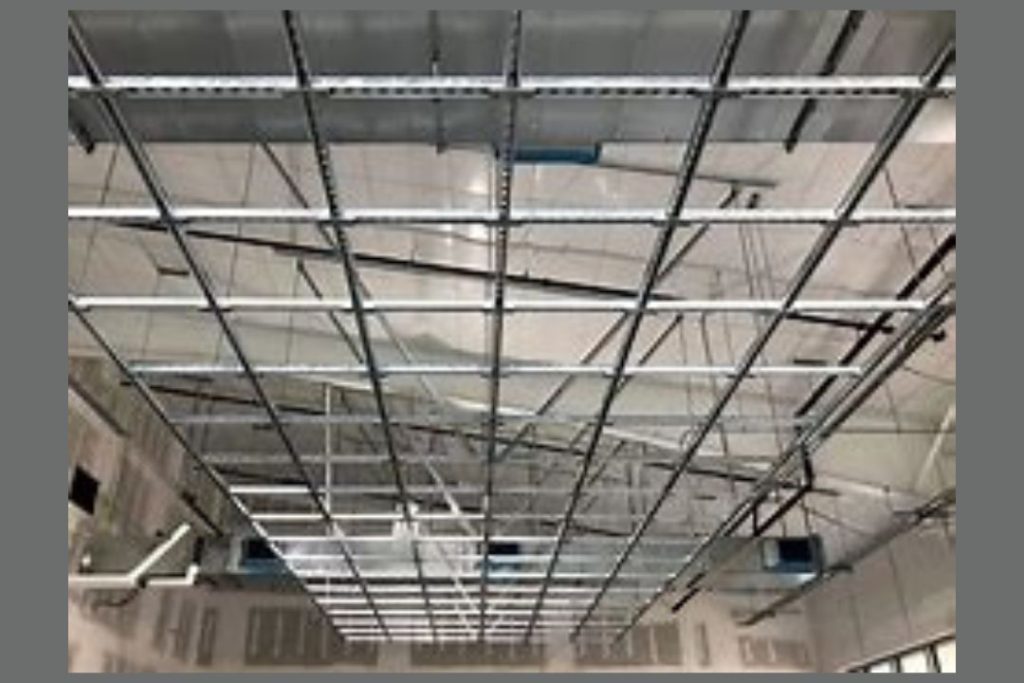

🛠️ Suspension Grid System Components

To support both mineral fibre and gypsum boards, IG Supplies provides a full range of ceiling grid mesh systems made from galvanized steel with high load-bearing capacity. These components ensure fast, stable, and level installations.

---

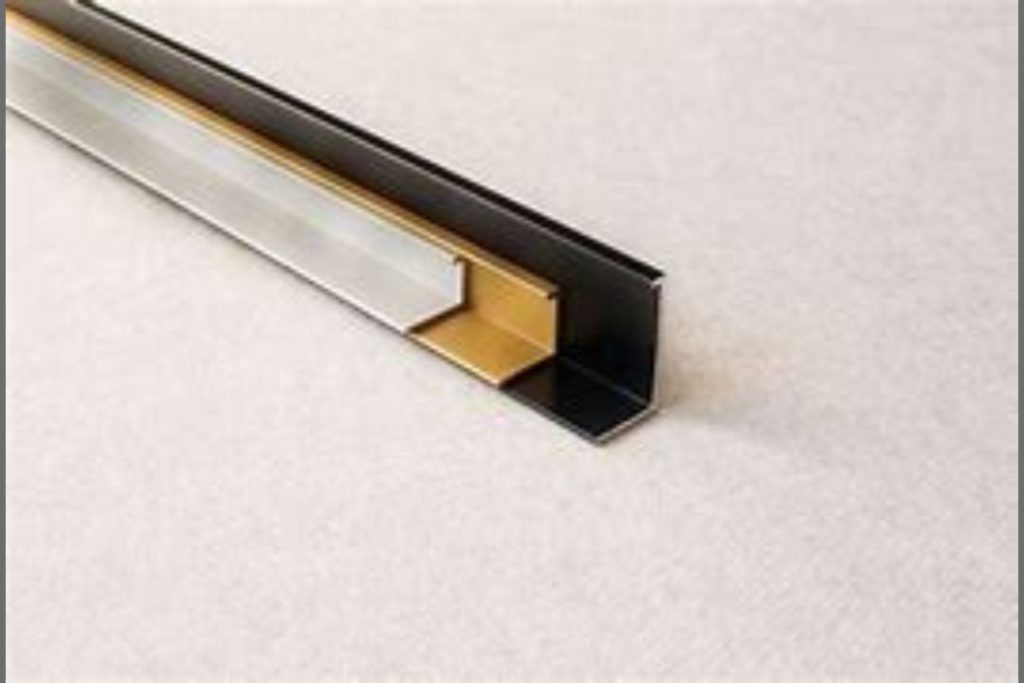

3. Acoustic Wall Angle

Description:
A galvanized steel angle section installed around the perimeter of the room to support the ceiling grid structure.

Dimensions:

• Width: 24mm
• Length: 3 meters
• Thickness: 0.35–0.45mm

Applications:

• Used as a perimeter support for suspended ceilings
• Ensures level alignment for main tees and cross tees
• Acts as a boundary reference for grid placement

---

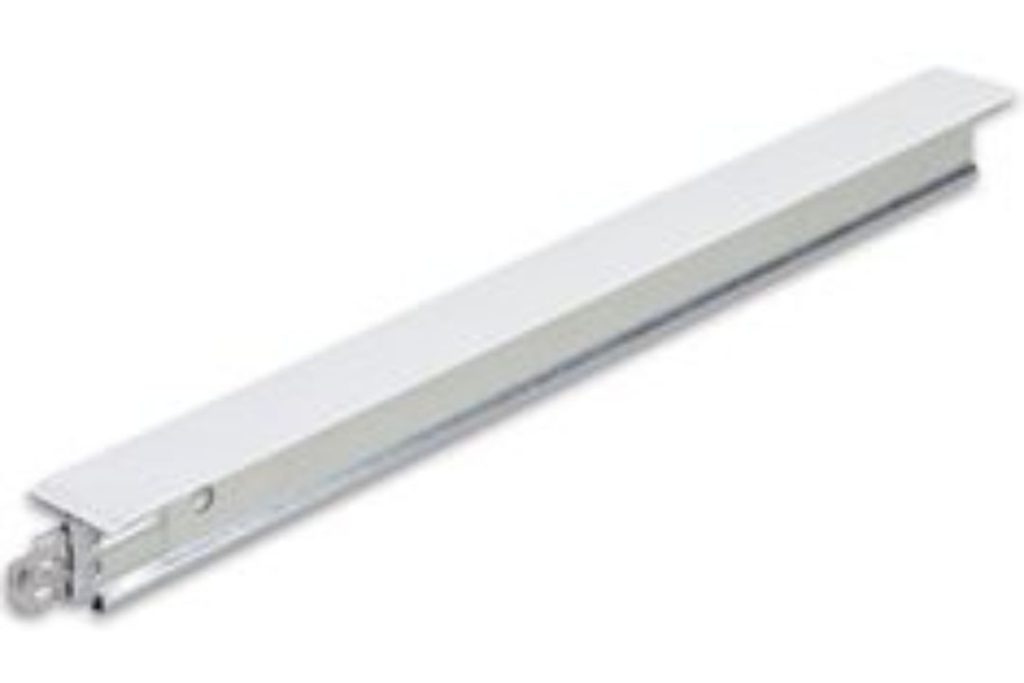

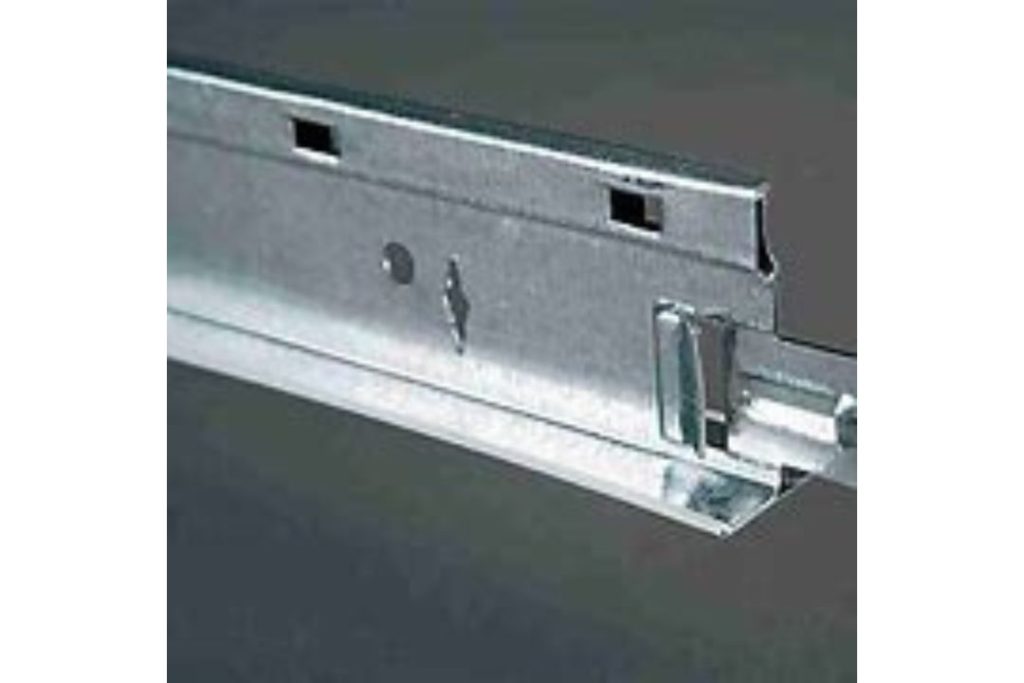

4. Acoustic Main Tee

Description:
The primary load-bearing member of a ceiling suspension grid system, extending the full length of the ceiling and supporting middle and cross tees.

Specifications:

• Length: 3.6m – 3.8m
• Width: 24mm or 38mm face
• Material: Hot-dip galvanized steel

Applications:

• Suspends ceiling panels across larger spans
• Directly fixed to ceiling hangers or suspension rods
• Provides structural base for acoustic tile installation

Advantages:

• Snap-lock or hook-on installation
• Corrosion-resistant coating
• Supports heavy board types including gypsum and insulation tiles

---

5. Acoustic Middle Tee

Description:
A secondary grid support, also called intermediate tees, positioned between main tees to subdivide ceiling tile modules.

Specifications:

• Length: 1.2m or 0.6m
• Width: 24mm
• Interlocking ends for quick assembly

Applications:

• Provides support between ceiling tiles
• Allows for customized panel spacing
• Ensures structural rigidity of the ceiling system

---

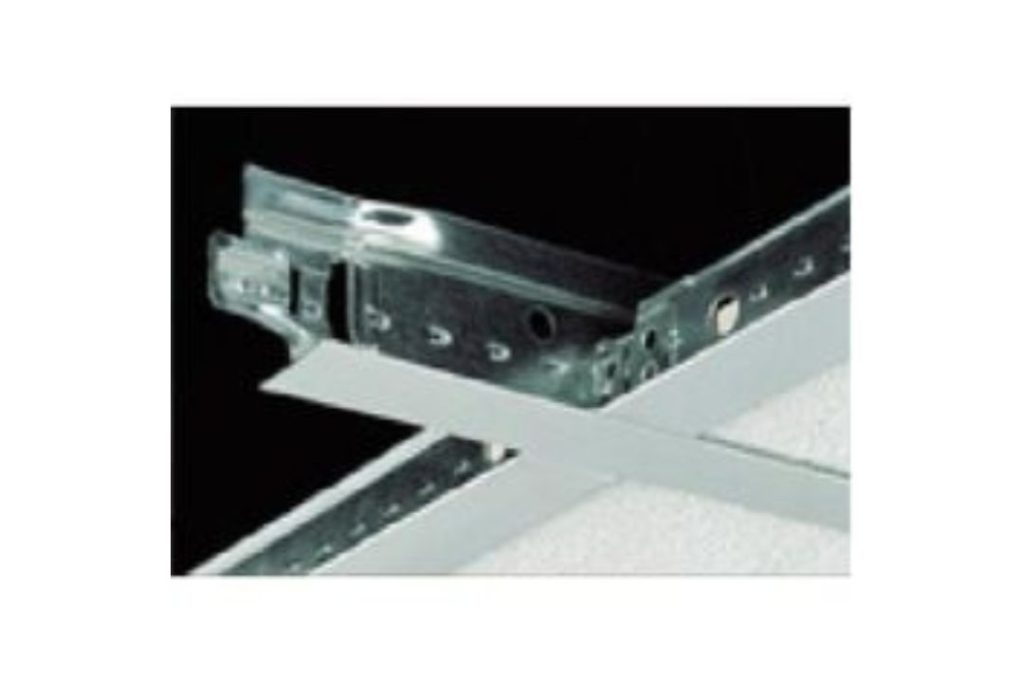

6. Acoustic Cross Tee

Description:
Cross tees run perpendicular to both the main and middle tees to complete the grid in either a 600mm x 600mm or 600mm x 1200mm layout.

Length:

• Typically 600mm (2 ft)

Applications:

• Final segment for tile placement
• Supports both mineral and gypsum acoustic tiles
• Used for creating square or rectangular ceiling modules

---

🔧 Installation Systems

Our ceiling systems are fully modular, supporting:

• Lay-in (exposed grid) systems
• Clip-in (concealed edge) designs
• Compatibility with downlights, sprinklers, and air diffusers

IG Supplies also provides technical guidance and installation support for ceiling contractors across East Africa.

---

🌍 Why Builders Prefer IG Supplies

✅ Trusted supplier for interior contractors and MEP installers
✅ Fast delivery in Kenya, Uganda, Tanzania, Rwanda
✅ Full inventory of panels, grid components & accessories
✅ On-site installation training & support
✅ Competitive pricing for bulk and project tenders
